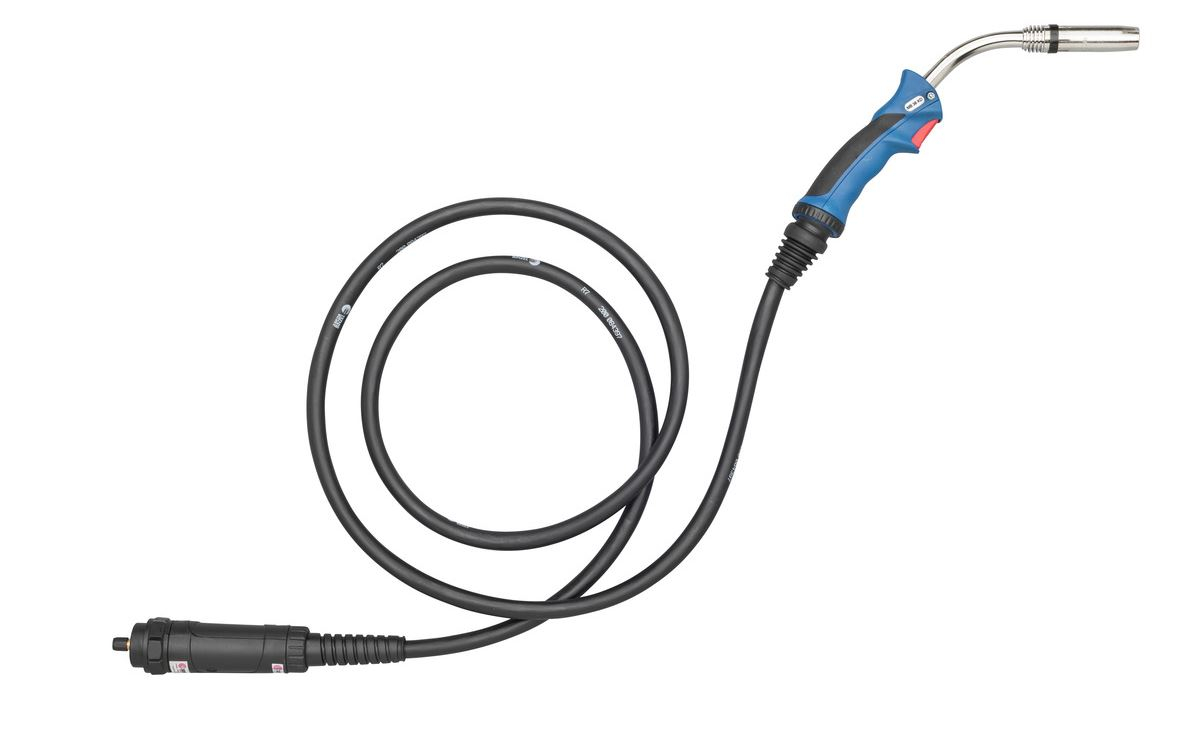

MB36 TORCH

Descriptions

MB EVO. The classic line …

The MB EVO torch series stands for a completely new handling concept that goes down new roads with regard to form and function. The welding torch forms a strong unit together with the welder‘s hand. The unique ergonomics as interplay between handle, trigger position, trigger design and ball joint construction guarantees a good feeling for welding in all working positions as well as the best results.

MIG/MAG Welding Torches MB EVO, air cooled:

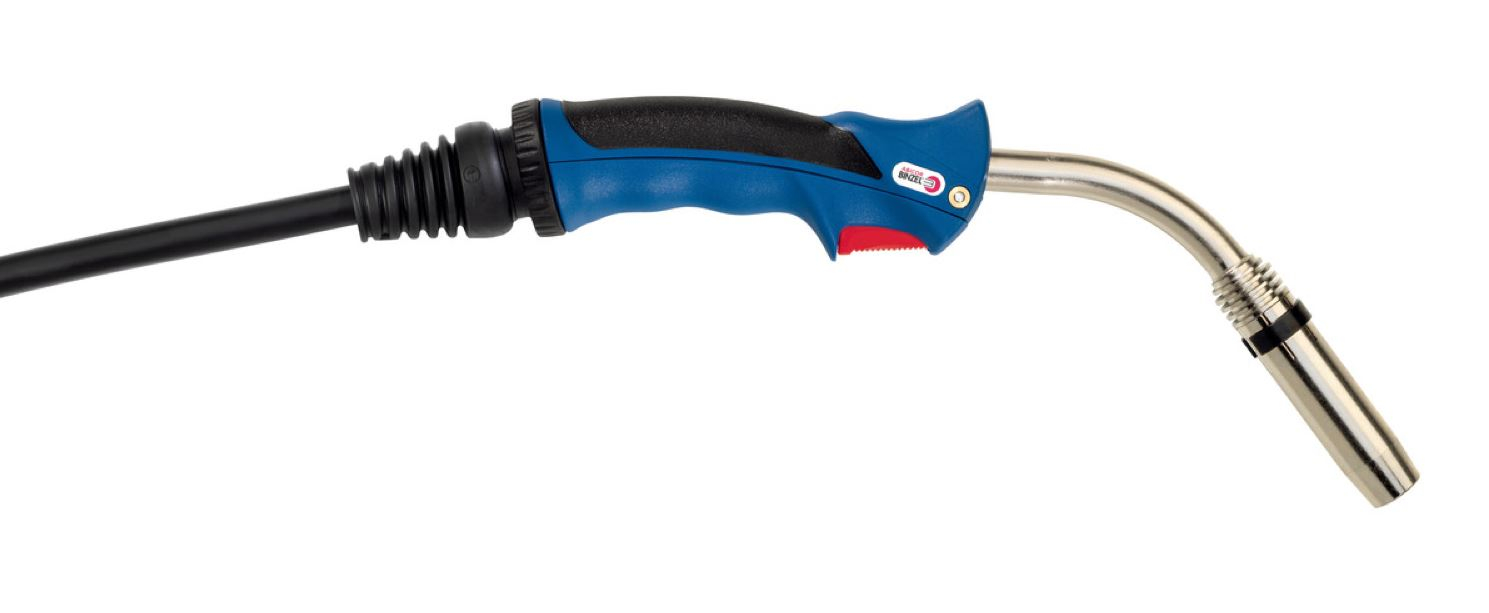

Genuine two-component handle – robust and ergonomical
Optimum trigger position and tapered handle design – for precise and safe handling
Special internal geometry with air cooled torches – for “cool” handles and maximum mechanical strength
Proven “MB” wearing part concept – for a long service life
Solid, size-optimised central connector

Technical data (EN 60 974-7):

Type:	MB EVO 15	MB EVO 24	MB EVO 25	MB EVO 26	MB EVO 36
Rating
CO₂:	180 A / 150 A	250 A	230 A	270 A	320 A
Mixed gases M21*:	180 A / 150 A	220 A	200 A	240 A	290 A
Duty Cycle (%):	35 / 60	60	60	60	60
Wire Ø (mm):	0.6 - 1.0	0.8 - 1.2	0.8 - 1.2	0.8 - 1.2	0.8 - 1.2
